Form Factor

1U Rackmount Chassis

M/B Form Factor

12”*13”, 12”*10.5”, 12”*9.6”,  9.6”*9.6”,  17*17cm(ITX) 等

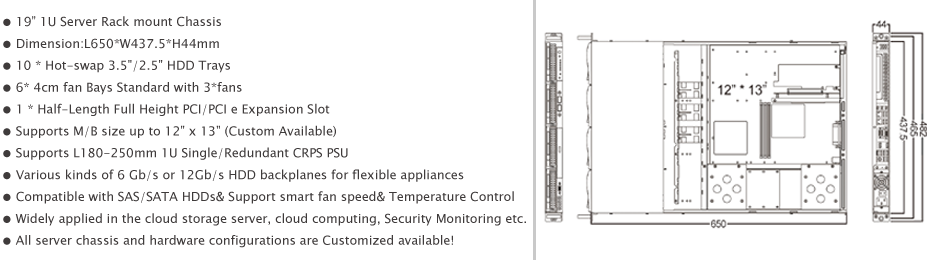

Dimensions (Dx Wx H)

650 x 437.5 x 44(mm)

Material

Anti-finger Rohs-SGCC 1.0mm
Zinc-coated steel

Front Control

1x Power, 1x Reset, 1x UID
2x USB2.0/USB3.0

Indicators

1x Power Led, 1x HDD Led,2x NIC Leds,1xUID Led,1xOH/ FAN Fail Led,1xPower Fail Led

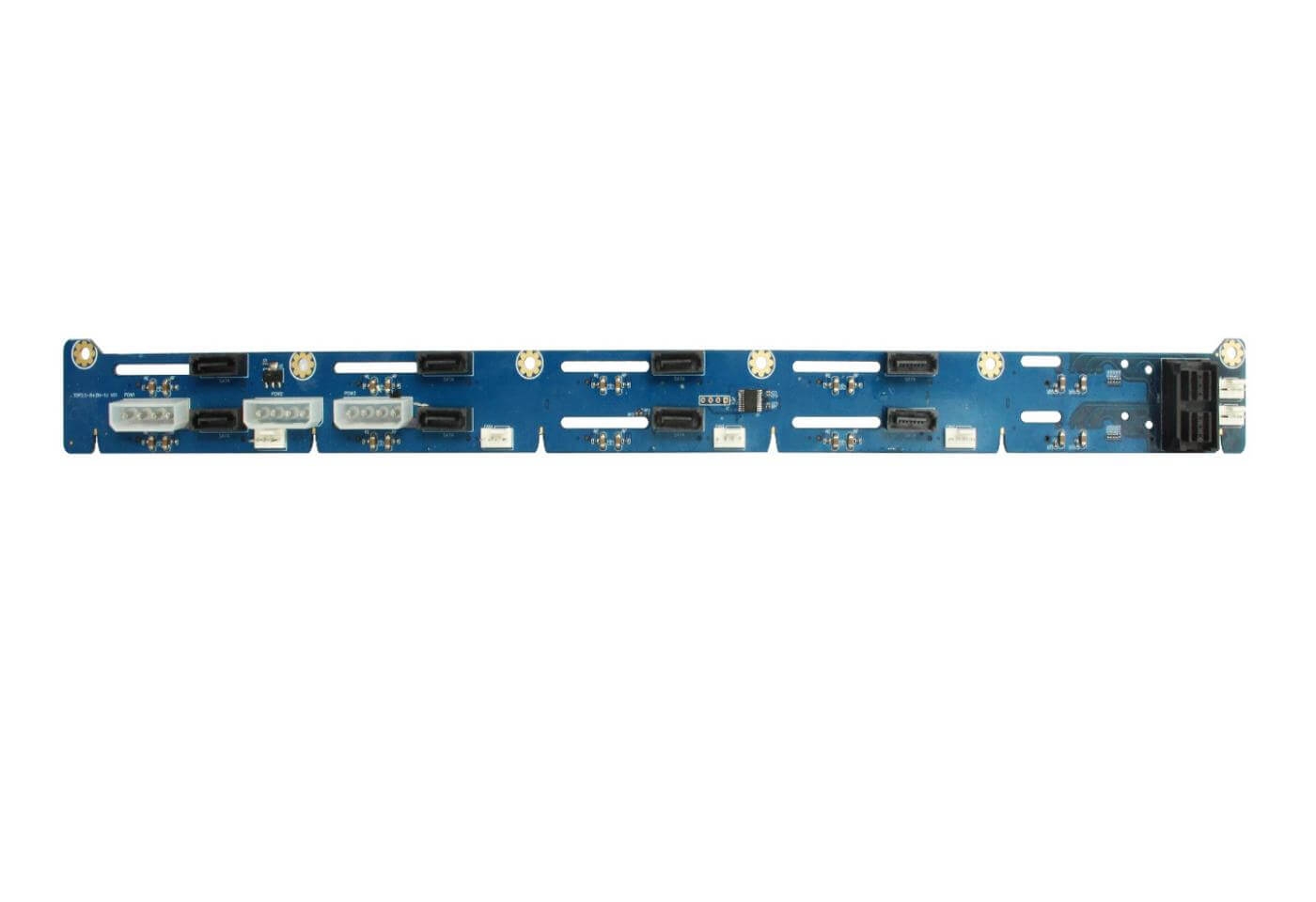

Hotswap Backplane

12GB Mini SAS HD SGPIO with
2xNvme Backplane

Drive Bays

External 3.5"/ 2.5"：10

Internal 2.5"：1

Cooling Fans

4 x4056mm fans (Middle);
max 6x 4056mm fans.

Expansion Slots

1x Full Height

PSU Form Factor

1U Single PSU(250W~500W);/
1U Dual 450W,600W Redundant PSU.

Color

Front Panel Coated Black (Others customized)

Application

Cloud Storage, Cloud Computer, Huge Storage,Datacenters, NVR, Security Monitor

Industry etc.

Net Weight

4.15Kg

Gross Weight

5.2Kgs

Unit Carton Size

1.24

Customized

Available

Order Code

M/B

HDD Backplane

PSU

Rear Window

Slide Rail

CS15604A6

12"x10.5"

4-Bay 2.5"/3.5", 6GB SATA

Option 400W/500 1U single

1-Slot,HF

Option

CS15604M6

12"x10.5"

4-Bay 2.5"/3.5", 6GB mini SAS

Option 400W/500 1U single

1-Slot,HF

Option

CS15604G12

12"x10.5"

4-Bay 2.5"/3.5", 12GB mini SAS HD SGPIO

Option 400W/500 1U single

1-Slot,HF

Option

CS16504A6

12"x13"

4-Bay 2.5"/3.5", 6GB SATA

Option 500 1U single

1-Slot,HF

Option

CS16504M6

12"x13"

4-Bay 2.5"/3.5", 6GB mini SAS

Option 500 1U single

1-Slot,HF

Option

CS16504G12

12"x13"

4-Bay 2.5"/3.5", 12GB mini SAS HD SGPIO

Option 500 1U single

1-Slot,HF

Option

CT16510G12

12"x13"

10-Bay 2.5", 12GB mini SAS HD SGPIO

Option 500 1U single

1-Slot,HF

Option
