Form Factor |

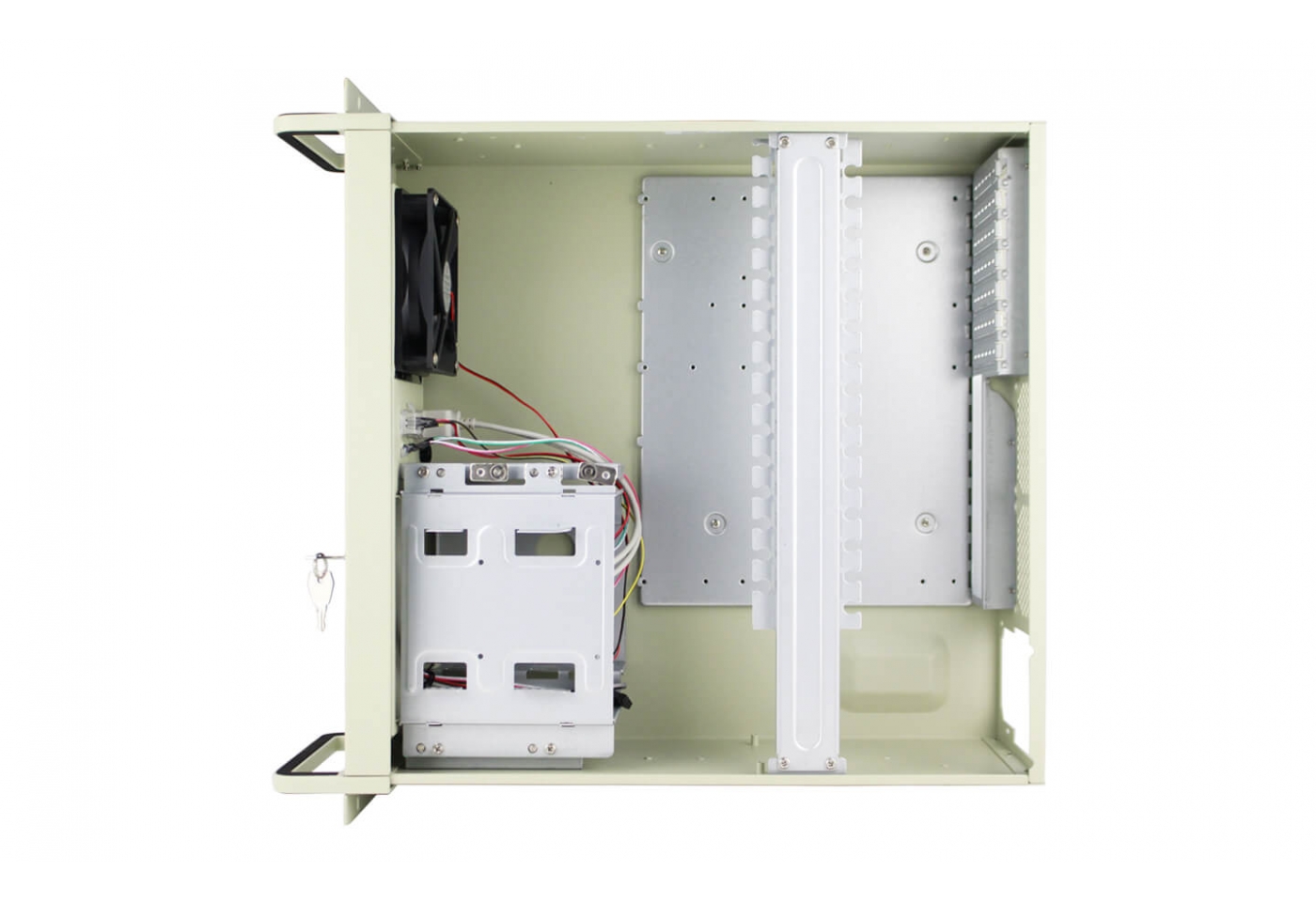

4U Rackmount IPC Chassis |
|
M/B Form Factor |
Motherboard MAX 12"x9.6". Customer Specified (OEM Available) |
|
Dimensions (Dx Wx H) |
450 x 432x 177(mm) |
|
Material |
Heavy 1.2 mm SGCC |
|
Front Control |
1x Power On/Off, 1x System Reset |
|
Indicators |
1x Power Status, 1x HDD Status |
|
Hotswap Backplane |
N/A |
|
Drive Bays |
External: 2*5.25”,
|
|
Cooling Fans |
Default 1x 12025S Cooling fan |
|
Expansion Slots |
7x Full Height |
|
PSU Form Factor |
Supports ATX power supply |
|
Color |
Powered in industrial Gray (Others customized) |
|
Application |
industrial control, security monitoring, machinery automation, intelligent transportation, IOT etc |
|
Net Weight |
10.9Kg |
|
Gross Weight |
12.1Kgs |
|
Unit Carton Size |
580*530*260mm |
|
Customized |
Available |
| Option Item | Part Number | Description |
|---|---|---|
| Slide Rail | 22",26",28" | 22",26",28" Rack Rails Kits |
| Fan | AD1225B12H-P1P | Becool,12025B 4PIN PWM 0.53A 12V L300mm 3000RPM |
| Power Supply | 300/400W | Delta,300/400W |
| Power Supply | 300/400W/500W/600W | FSP,300/400W/500W/600W |
| Power Supply | 600W/850W | Delta,600W/850W |
| Motherboard | IMB-Q170 etc. | 5*PCIe,Intel 1151 6/7/8/9th Processor,XEON E3 V5/V6 |
 |
